Metal Bench Lathe Machine 8 * 16 Inch Switch Imperial and Metric Scale Automatically for Milling Drilling Metal Working with Adjustable Speed 3-Jaw Chuck Emergency Stop Switch 1100W

Parameters: Voltage: AC110V Motor: Brushless Motor Power: 1100W(1.5HP) Length of center: 15.75inch(400mm) Swing Over Bed: 8.27inch(210mm) Rotary diameter of tool rest: 5.51inch(140mm) Spindle bore: 1.50inch(38mm) Diameter of chuck: 4.92inch(125mm) Width of lathe bed: 3.94inch(100mm) Turning delay start time: 1s-30s Range of Inch Threads: 10-44 T.P.I Range of metric threads: 0.02-0.12inch (0.5-3mm) Spindle taper: MT5 Tool rest station: Horizontal four-station Spindle rotation speed: 50-1250rpm/100-2500rpm Precision of the spindle: 0.00039inch(0.01mm) Automatic feed range: 0.00039-0.016inch(0.01mm-0.4mm) Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16inch(55mm) Maximum stroke of middle plate: 2.95inch (75mm) Maximum stroke of bottom plate: 19.68inch(500mm) Maximum stroke of tailstock sleeve: 2.36inch(60mm) Lathe sizes: 31.9inch*17.3inch*13.2inch(81*44*33.5cm) Package size: 35.83inch*18.5inch*17.32inch Gross weight: 159.83lbs Net weight: 125.66lbs Note: The yellow color on the lathe bed and chuck is anti-rust oil, which is a normal phenomenon and can be wiped off with machine oil or gasoline before use. Before starting, be sure to clean the anti-rust oil on the chuck and turn the chuck by hand to prevent the chuck from jamming and causing the circuit board to burn out.

• [High Quality] The lathe bed is made of cast iron which is processed by high-frequency quenching and precise grinding. It adopts high quality spindle and bearings with high accuracy, wear resistance and long service life. The three-jaw chuck with 4.92inch clamping diameter is used to clamp square and round materials firmly.
• [Adjustable Speed] The spindle rotation speed of our metal lathe is divided into two levels, 50-1250rpm and 100-2500rpm, which can be adjusted continuously. You can adjust the speed on the digital screen, which is very precise and convenient.
• [Low Noise] The metal lathe is powered by an 110V brushless motor with strong power, low energy consumption and low noise(<75db). The lathe has no gears and is driven by a belt with low noise.

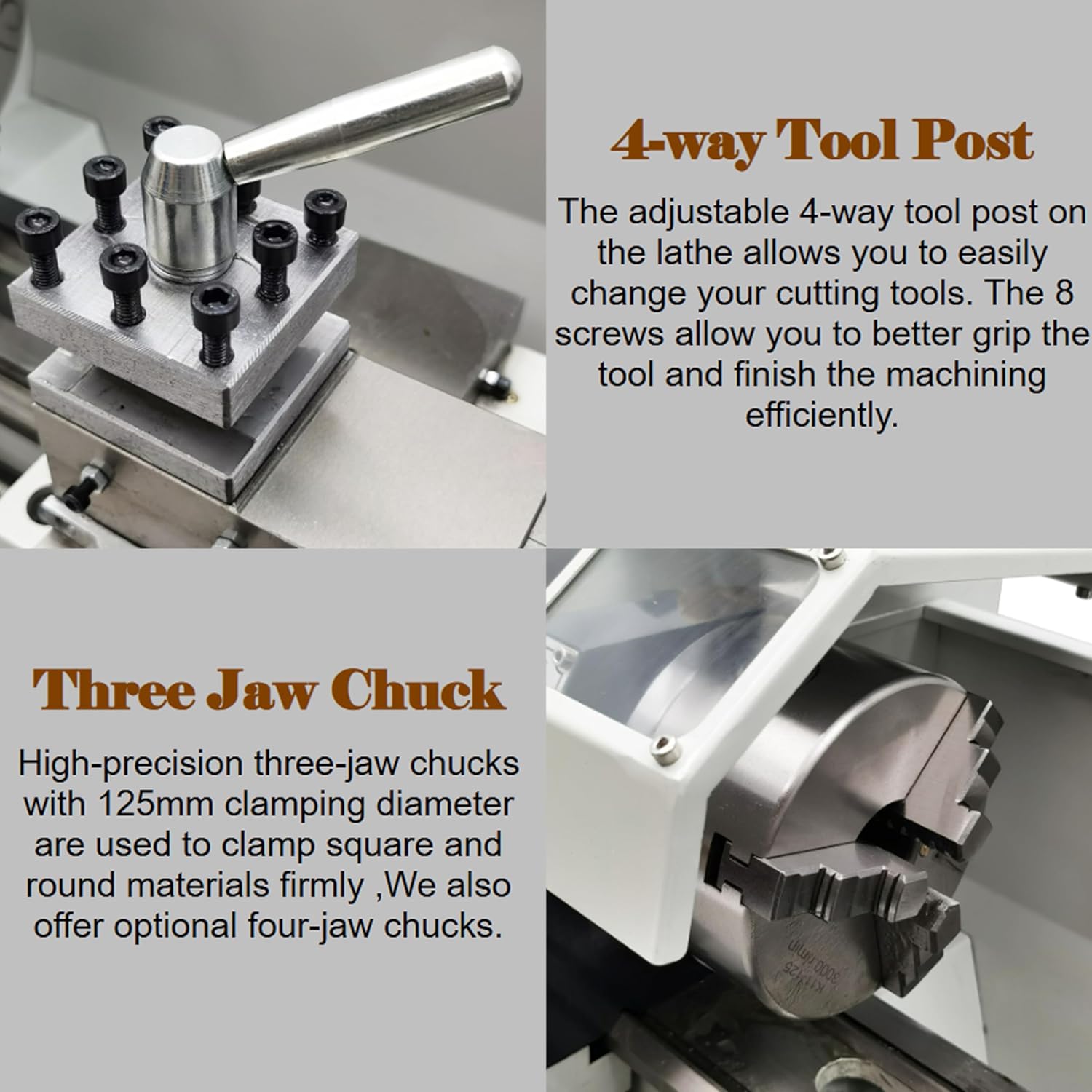

• [User-Friendly Design] The metal bench lathe machine is equipped with an emergency stop switch for immediate shutdown in case of emergencies. The adjustable 4-way tool post on the lathe allows you to change your cutting tools easily. With the MT2 taper in tailstock spindle, this lathe machine is capable of adjusting set screws for accurate operation. You can switch between metric and imperial scale on the panel without changing gears. The self-acting feed speed can be set through the panel.

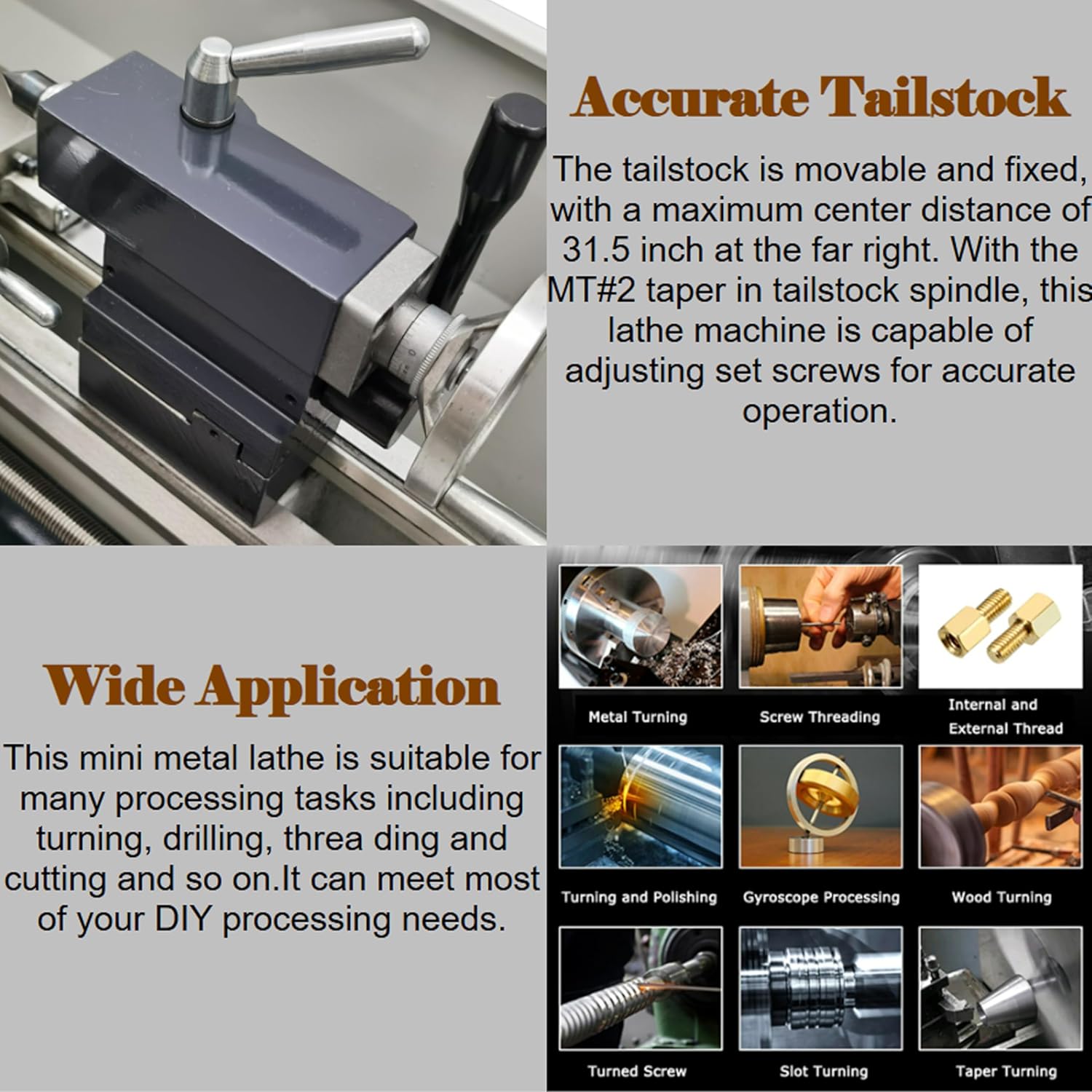

• [Widely Used] This miniature lathe is mainly used for processing the end faces of various rotary surfaces and rotating bodies. For example, the lathe is used for turning the inside and outside of cylindrical surfaces, conical surfaces, ring grooves, forming turning surfaces and turning the end faces and a variety of commonly used imperial and metric threads.
