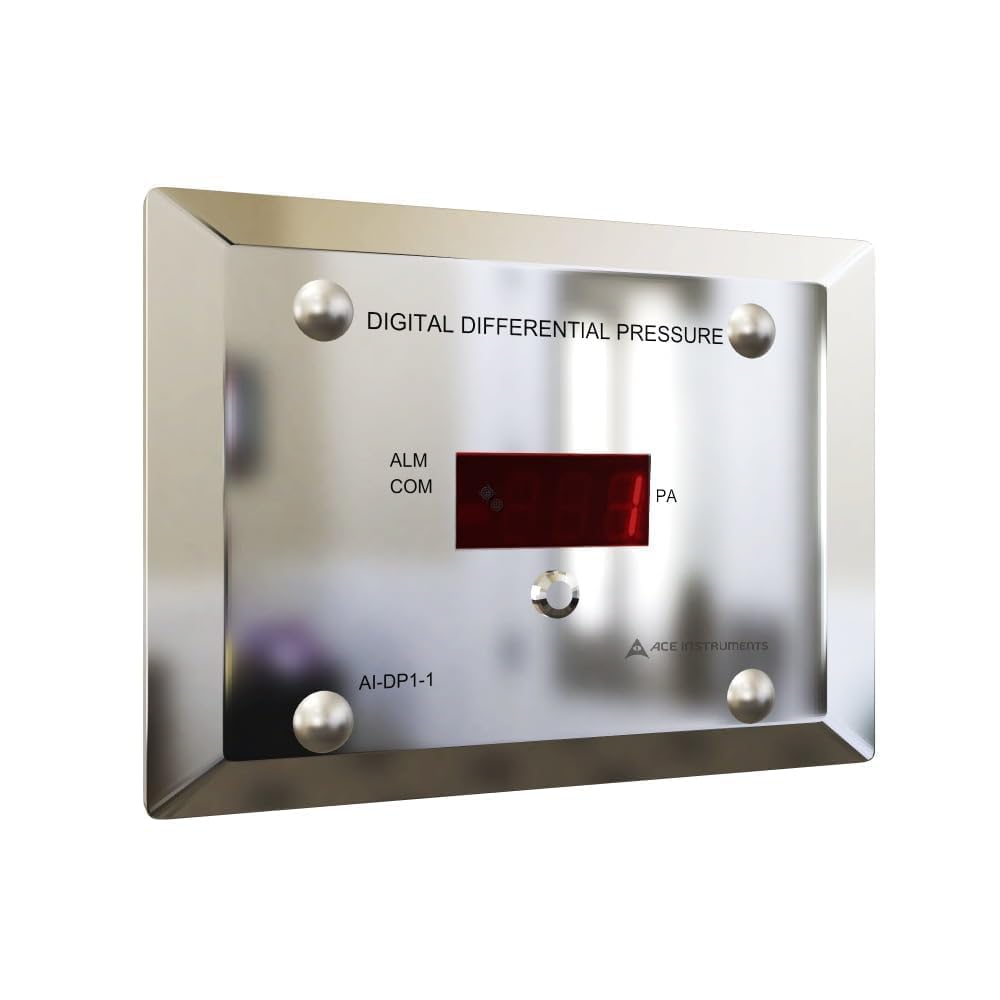

Digital Differential Pressure Indicator (Range: -180 to 180 Pascals/ -0.72 to 0.72 in.Wc) for Infection Rooms Model: ACE AI-DP1-LCD

ACE INSTRUMENTS make Digital Differential Pressure Indicator are digital readout differential pressure monitors designed for measuring the room pressure inside Pharma clean rooms, hospital operation theaters & isolation rooms.

• Measuring Ranges: -0.72 to +0.72 in.WC/-18 to 18 mm.WC/-180 to 180 Pascals | Accuracy: ±0.5% of Full Scale | Isolated | Display: LCD | Maximum Over Pressure: 4 Times the rated pressure | Sensors: Integrated High Speed Differential Pressure Sensor.
• Power: 24V DC adaptor (compatible with all country regions)Typical; Alarms: Built In High & Low Buzzer Alarm for Process Set Parameter Violation with Acknowledgement Key; Construction: M.S. Powder Coated Body(Back)with Stainless Steel Front Flush Plate for Modular Wall Fitment in Clean Rooms.
• Communication: Isolated RS485 Modbus Protocols(Optional); Connection: 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back; Medium: Air or Gases ( Non Corrosive )
• Dimensions: Instrument Enclosure is in 100×90×30 mm. (W×H×D); Unit Selection: Factory Fixed Selection for mm.W.C/Pascals.
• 1 Unit of DP1-LCD Differential Pressure Indicator, 1 Pair of Wall-Mounted Hose Nipples, Power Adaptor, Instruction Manual and Factory Calibration Certificate with International Standards | Applications: Infection Rooms, Hospital Operation Theatre (OT) rooms, Isolation Rooms, Laminar Air Flow Cabinets, Pharmaceutical Clean Rooms, HVAC, Bio Safety Cabinets, AHUs.
